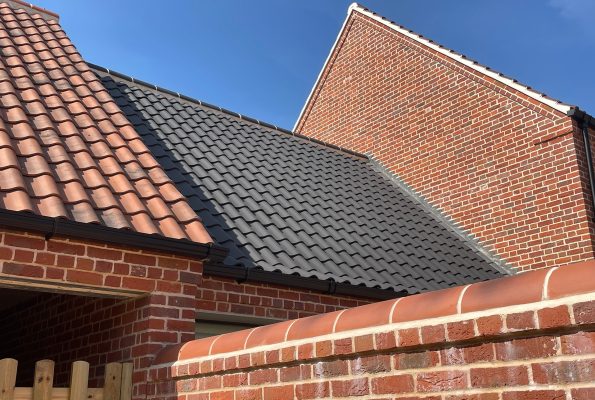

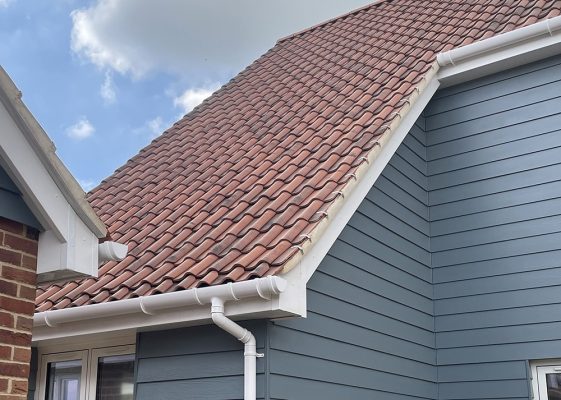

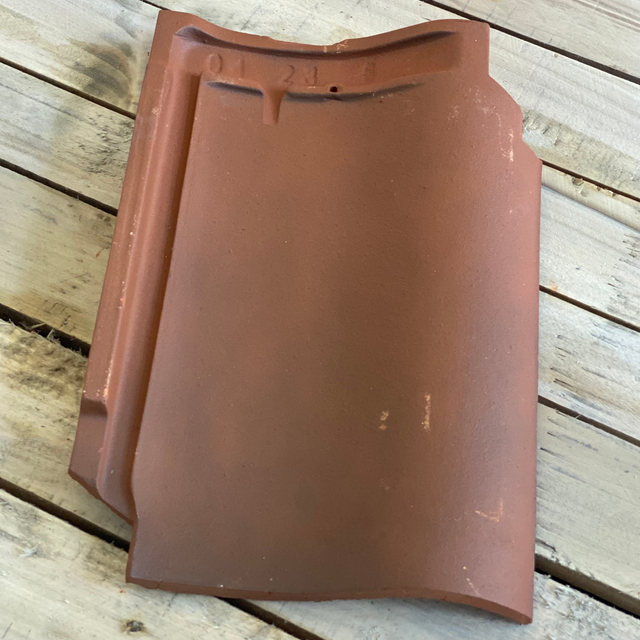

A beautiful, traditional clay tile designed to adorn and complement regional roofscapes where the Old English Pantile has been first choice for centuries.
Made from Flemish Clay renowned for its high quality and its mellow mature colours, the Single Panne S results from the application of our high technology and exceptional quality standards to one of the most appealing and traditional of tiles.
| Quantity per pallet | 420 tiles |
|---|---|
| Coverage | 20 per m2 |
| Nominal gauge | 275mm |
| Overall length | 342mm |
| Overall width | 232mm |
| Working width | 190mm |
| Minimum headlap | 67mm |
| Unit weight | 2.3Kg |
| Weight per m2 | 46Kg |
| Minimum roof pitch | 22.5° |
| Batten coverage m2 | 3.64 l/m |
| Batten sizes | 38 x 25mm rafter centres 450mm 50 x 25mm rafter centres 600mm |
| Nail size | 50 x 3.35mm |
A beautiful, traditional clay tile designed to adorn and complement regional roofscapes where the Old English Pantile has been first choice for centuries.
Made from Flemish Clay renowned for its high quality and its mellow mature colours, the Single Panne S results from the application of our high technology and exceptional quality standards to one of the most appealing and traditional of tiles.
