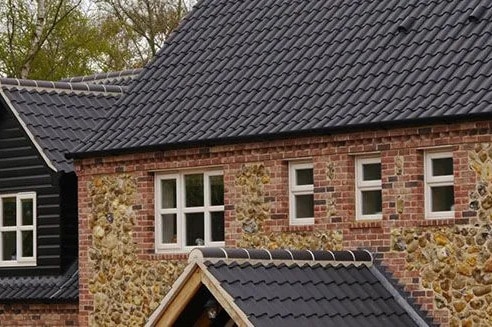

Experience the epitome of modern sophistication with Edilians’ Slate Panne S tile. Merging timeless elegance with contemporary design, sleek and sophisticated, these tiles are setting a new standard for style in roofing solutions. Crafted with precision and durability in mind, these tiles are not only aesthetically pleasing to the eye, but also provide long-lasting performance.
Exceptionally quick and easy to install, the Double Panne S maintains the traditional appearance of the Single Panne S with the economy and ease of a double tile.
| Quantity per pallets | 210 tiles |
|---|---|
| Coverage | 10 per m2 |
| Nominal gauge | 275mm |
| Overall length | 339mm |
| Overall width | 423mm |
| Working width | 378mm |
| Minimum headlap | 64mm |
| Unit weight | 4.3kg |
| Weight per m2 | 43kg |
| Minimum roof pitch | 17.5° |
| Batten coverage m2 | 3.64 l/m |
| Batten sizes | 38 x 25mm rafter centres 450mm 50 x 25mm rafter centres 600mm |
| Nail size | 50 x 3.35mm |
Exceptionally quick and easy to install, the Double Panne S maintains the traditional appearance of the Single Panne S with the economy and ease of a double tile.
With a low roof pitch suitability of 17.5°, the Double Panne S is available in an attractive colour range including impact-resistant engobed finishes.
